Product Description
Talk to anyone who's been running pneumatic drilling equipment for more than a few years, and they'll tell you the same thing: the drill matters, the compressor matters, but the stuff in between — the hoses, the fittings, the couplings — that's what actually keeps your crew working.

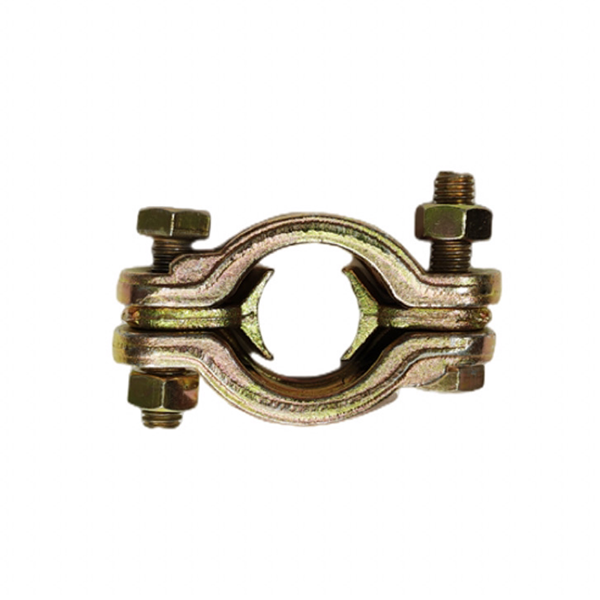

The SL40 is a 1-inch air hose coupling designed for exactly that reality. It's not the most exciting product in your toolkit. It might be the most important one you never think about — until it fails.
The Most Common Size for a Reason
There's a reason 1-inch (25mm) is the standard air hose size across most mining and construction operations worldwide. It hits the sweet spot between air delivery capacity and practical handling. A 1-inch line at 0.5 MPa can deliver enough compressed air to run a YT29 or YT28 air-leg rock drill at full capacity through hose runs of 30–50 meters without significant pressure drop.
The SL40 is built for this standard. If you're running jack hammers — whether that's air-leg models like the YT29, YT28, and 7655, or hand-held units like the Y24 and Y26 — there's a very good chance your air system uses 1-inch hoses, which means the SL40 is exactly what connects that hose to the rest of your setup.
How It Works
The SL40 uses a band-clamp (abrazadera) design. You slide the coupling over the end of your 1-inch air hose and tighten the clamp bolt. The internal band compresses evenly around the hose, creating a seal that holds under operating pressures of 0.4–0.63 MPa.
It's simple, it's proven, and it doesn't require any special tools beyond a wrench. On a job site where you might be working in rain, dust, or mud, that simplicity is worth more than any fancy quick-connect system.
What makes the SL40 different from cheap alternatives:
Brass body construction — resists corrosion from moisture in compressed air systems. Cheap steel clamps rust from the inside out, and you won't notice until the hose blows off mid-shift.
Even band pressure distribution — the clamp design spreads force around the full circumference of the hose, preventing the localized crushing you see with poorly designed clamps.
Vibration-resistant hold — pneumatic rock drills operate at 30–37 Hz impact frequency. That's a lot of shaking traveling up the hose. The SL40 stays tight.
Real-World Performance
We supply these to mining operations across Africa, Southeast Asia, and South America. The most common feedback we get isn't about the product — it's about the ordering process. Customers tell us they've been buying these locally at three to four times our price, or worse, flying them in as "emergency parts" because nobody in their supply chain stocks them.
The thing about air hose couplings is that they're consumable. They wear out. The seal degrades, the bolt threads get damaged, and eventually you get that slow hiss that means you're losing pressure and don't know it until someone notices the drill isn't hitting like it should.
Having a box of SL40s on hand means your crew swaps the coupling in five minutes and gets back to work. Not having one means they improvise — hose clamps, duct tape, wire — and you end up with an unsafe connection that's going to fail at the worst possible time.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | SL40 |
| Type | Abrozaderas (hose clamp coupling) |
| Hose Size | 1 inch (25 mm) |
| Working Pressure | 0.4–0.63 MPa (58–91 PSI) |
| Material | Brass |
| Connection Method | Band clamp, bolt-tightened |
| Compatible Equipment | YT29, YT28, YT27, YT24, 7655, Y24, Y26, Y28 jack hammers |
| Unit Price (EXW) | ~$1.00 USD |
Maintenance Recommendation
Based on field data from our customers, here's a practical replacement schedule:
Visual inspection: Weekly. Look for cracks in the brass body, damaged bolt threads, or corrosion.
Bubble test: Monthly. Apply soapy water to the connection while the system is pressurized. Any bubbles mean it's time to replace.
Seal component replacement: Every 6 months, regardless of apparent condition. Rubber seals degrade gradually, and a marginal seal costs you in air efficiency long before it becomes an obvious leak.
Frequently Asked Questions
Q: Is 1 inch big enough for a YT29 rock drill? For most setups, yes. A 1-inch hose running at 0.5 MPa delivers sufficient air for a single YT29 over distances up to 50 meters. If you're running multiple drills from one line or operating at the extreme end of the hose distance, consider stepping up to the SL76 (2-inch coupling) with a reducer.
Q: How tight should I make the clamp bolt? Firm enough that you can't rotate the coupling on the hose by hand, but not so tight that the bolt threads feel strained. If you hear or feel the bolt yielding, back off — you've gone too far. The seal comes from even compression, not maximum force.
Q: Can I reuse the coupling if I cut the hose? You can, but inspect it carefully first. Cutting the hose and reclamping can leave score marks on the inside of the coupling that may cause leakage. If it passes a bubble test after reinstallation, it's fine to use.
Q: What's the difference between abrazadera and a threaded coupling? An abrazadera (band clamp) goes around the outside of the hose. A threaded coupling (like our BDL series) screws into a threaded port on the drill or compressor. They serve different purposes — the abrazadera secures the hose itself, while threaded couplings make the connection between components with threaded fittings.
Q: Do you ship internationally? Yes. We ship from Xiamen, China to ports worldwide. Typical delivery time is 5 business days after order confirmation. Minimum order quantity is flexible — contact us for a quote tailored to your needs.
