If you’ve used a jack hammer on a jobsite, you already know what matters: it has to hit hard, run steadily, and not feel like it’s trying to shake your arms off after 20 minutes. The C6 Pneumatic Air Pick Hammer is built around a very classic principle—compressed air drives an internal piston/hammer body to move back and forth, repeatedly striking the chisel (pick)—and that simple, proven structure is exactly why a Pneumatic jack hammer is still a go-to tool in demolition, road repair, mining, and maintenance work.
This model is a compact, hand-carried tool (a true hand held jack hammer) designed for “break, chip, open, clean” type jobs: breaking concrete and masonry, opening asphalt or slabs for repair, and chipping/cleaning work in metal and industrial maintenance environments.

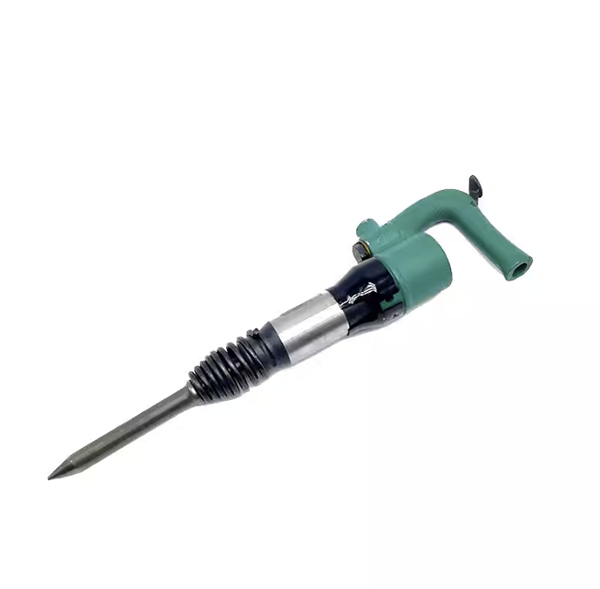

Quick Intro: What the C6 Is (With the Numbers That Actually Matter)
Here are the core specs for the C6 Pneumatic Air Pick Hammer, and what they mean in real use:
Overall length: 365 mm — compact body, easier to control in tighter spaces (walls, corners, trenches, scaffolding work).
Weight: 7 kg — light enough for handheld work, especially when the task is “chip and control” instead of “pure brute force.”
Impact energy: 14 J — strong enough for concrete/brick opening and general breaking jobs without stepping up to oversized tools.
Impact frequency: 32 Hz — fast striking rate that helps the chisel keep “biting” rather than bouncing.
Hammer stroke: 30 mm — the internal hammer’s travel distance that supports stable repeated impact.
Working pressure: 0.63 MPa — your air supply should be able to hold this pressure under load for consistent performance.
Air consumption: 21 L/s — important for choosing the right compressor (and keeping the tool from “going soft” mid-job).
Air hose inner diameter: 16 mm — matches a very common on-site setup; also lines up with the guideline that 16 mm hose is a good choice and hose length is better controlled (often recommended not to go too long to avoid pressure drop).
Shank size: 17.5 × 60 mm — your chisels/picks need to match this to fit correctly and transmit impact efficiently.
So, in one sentence: the C6 is a Pneumatic jack hammer that stays portable (7 kg / 365 mm) while still delivering a solid hit (14 J) at a fast pace (32 Hz), running at 0.63 MPa with a 16 mm air line.
Where the C6 Hand Held Jack Hammer Fits Best
Based on the typical working scope you shared, this kind of air pick is usually used for:
Construction & demolition
Breaking concrete floors, walls, slabs
Removing old tiles / bricks / mortar
Opening brick walls or concrete walls for doors, windows, piping runs
Road and municipal repair
Breaking asphalt or concrete pavement so crews can repair or install drainage, cables, and other underground systems
Mining & quarry-type work
In mining, air picks are often used to break coal seams or softer rock, and for trimming and cleanup where a larger machine isn’t practical
Metal / industrial maintenance
You also mentioned applications like casting cleanup (desanding), deburring, removing risers, plus weld seam/chamfer cleaning, and boiler/furnace maintenance. In these jobs, control and repeatable impact often matter as much as raw power—another reason a compact hand held jack hammer is popular.
How It Works (In Plain Jobsite Language)
Inside the C6, compressed air is used to push the piston/hammer body back and forth. That moving hammer keeps striking the tail of the chisel, and the chisel transfers that impact into the material you’re breaking.
Structurally, you described the typical layout very clearly: air distribution (valve) mechanism + impact mechanism (thick-wall cylinder with a moving hammer) + chisel/pick. The valve system alternates intake and exhaust so the hammer moves in a controlled cycle. When the hammer moves back, trapped air can form a “soft” cushion, which helps absorb the return stroke before the next forward impact.
That’s the heart of why pneumatic picks last: fewer complicated electronics, and the energy path is direct—air → piston/hammer → chisel → material.
Questions Customers Usually Ask (And Straight Answers)
1) “Will this jack hammer be strong enough for my job?”
If your work is typical concrete/brick opening, slab breaking, tile removal, asphalt repair, the C6’s 14 J impact energy plus 32 Hz frequency is a very practical combination: it hits hard, and it hits fast.
If the job is thick reinforced concrete all day long, some crews choose heavier tools—but for the wide middle zone of construction and maintenance work, the C6 is a good balance of power and control.
2) “What air supply do I need to run it properly?”
Two numbers matter most here: 0.63 MPa working pressure and 21 L/s air consumption.
Your compressor needs to maintain 0.63 MPa under load, not just “reach it” with no tool running.
Airflow needs to keep up with 21 L/s, otherwise the tool will feel weak, especially during continuous chiseling.
Also, the recommended hose inner diameter is 16 mm—and your own guidance stresses keeping the hose clean, connections tight, and the line not excessively long (long hose = pressure drop).
3) “Is the C6 easy to handle for long hours?”
The spec that answers this is 7 kg weight and 365 mm overall length. In practice:
7 kg is workable for handheld chipping and controlled breaking.
The shorter body helps when you’re operating in awkward positions (walls, corners, overhead edges).
You also mentioned a “gradual start / vibration reduction” concept in your product knowledge: that’s the kind of detail operators care about because it directly affects fatigue and controllability. Even without turning this into marketing fluff, it’s a real point—less sudden kick, easier control, especially when you’re trying not to over-break or damage surrounding material.
4) “What are the most important operating habits to avoid damage?”
From the rules you provided, the biggest real-world “tool killers” are:
No dry running / no empty удар (空击): don’t run it without the chisel contacting material.
Don’t bury the chisel too deep so it locks and forces the tool to hammer uselessly.
If the chisel jams, don’t violently twist the tool—work it loose by rocking gently or clearing around the chisel.
And one more that people ignore: keep the hose straight—avoid sharp bends and kinks—because airflow instability shows up immediately as weak impact and higher wear.
5) “How often do I need to oil and clean it?”
Your maintenance notes are very clear and honestly match what good crews already do:
Oil before use (this is non-negotiable for pneumatic tools).
During normal work, add oil every ~2 hours (some sites say 2–3 hours; either way, it’s regular).
Weekly disassembly and cleaning (commonly with kerosene), then dry, oil, and reassemble.
If the tool has accumulated 8 hours+ of use, plan a cleaning service cycle.
If it sits unused for a week, oil it for storage.
This kind of routine is exactly what keeps a Pneumatic jack hammer running smoothly and reduces failures like sticking valves, worn seals, and heat-related issues at the chisel tail.
6) “What should I check before I start a shift?”
You gave a very practical checklist style, and it’s worth repeating in customer language:
Body: no cracks / damage
Springs/clamps: complete and flexible
Air filter screen: clean, not blocked
Pins/screws: present and tight
Chisel: tip sharp, tail flat, correct fit, no burrs
Air line: blow out debris before connecting, tight connectors, no leaks
That last step—blowing out the hose before connecting—is a small habit that prevents a lot of internal wear.
Final Thoughts: Why the C6 Is a Solid Choice
The C6 Pneumatic Air Pick Hammer is the kind of hand held jack hammer many crews want because it doesn’t pretend to be complicated. It’s a compact, job-ready jack hammer that runs on a clean compressed-air setup and focuses on consistent impact:
14 J impact energy + 32 Hz frequency = fast, effective breaking
0.63 MPa working pressure with 21 L/s air consumption = stable pneumatic performance when matched with the right compressor
7 kg / 365 mm = easier handling for real-world site work
16 mm hose size = practical, common, and aligned with good airflow practice
If you want a Pneumatic jack hammer that covers the everyday demolition, opening, chipping, and maintenance jobs—without dragging around an oversized tool—the C6 is a very sensible option.
