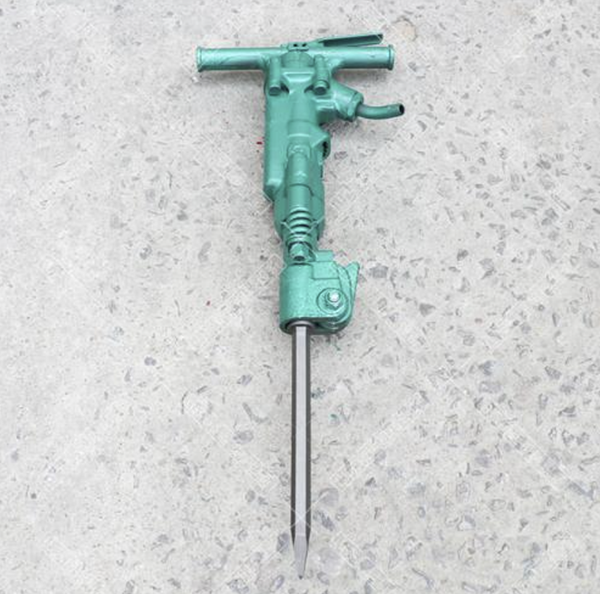

If you’re looking for a reliable jack hammer that’s still easy to control and carry on site, the B47 Pneumatic breaker hammer is a solid choice. This model is a classic hand held jack hammer powered by compressed air—simple structure, strong impact force, and built for continuous jobsite work where electricity may be inconvenient or unsafe.
A pneumatic tool like this works by using compressed air to drive the internal piston back and forth, creating repeated impacts on the chisel (tool steel). That impact is what makes a Pneumatic jack hammer effective for breaking and chiseling tasks in construction, road maintenance, and industrial applications.
Quick Introduction: What Makes the B47 Pneumatic Jack Hammer Special?
The B47 is designed around a stable impact system and practical air efficiency. Here are the key specs you provided (and the ones buyers usually compare first):
Piston diameter: 47.6 mm
Piston stroke: 100 mm
Percussive frequency: 1400 b.p.m
Length: 550 mm
Air consumption: 1.6 m³/min
Air tube diameter: 19 mm
Shank size: 25 × 105 mm
Air inlet size: 3/4 (P/T)
From a real user perspective: a 47.6 mm piston with a 100 mm stroke gives the B47 a strong “hit,” while 1400 blows per minute keeps the breaking progress steady rather than feeling jumpy or inconsistent. And with 1.6 m³/min air consumption, it’s a practical match for common jobsite compressors.
Typical Applications: Where a B47 Jack Hammer Helps Most
Based on the working scenarios you shared, the B47 Pneumatic jack hammer fits well in:
Construction demolition: breaking concrete surfaces, walls, floors
Road maintenance: removing asphalt/concrete for pipeline, cable, or underground repairs
Brick and concrete opening work: creating slots/openings in brick walls and concrete walls
Industrial maintenance: casting cleaning, deburring, furnace/boiler maintenance, metal structure chiseling (especially irregular or tight surfaces)

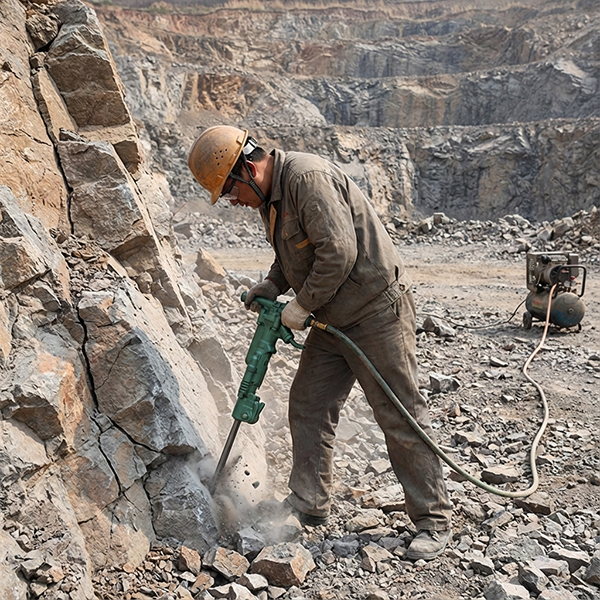

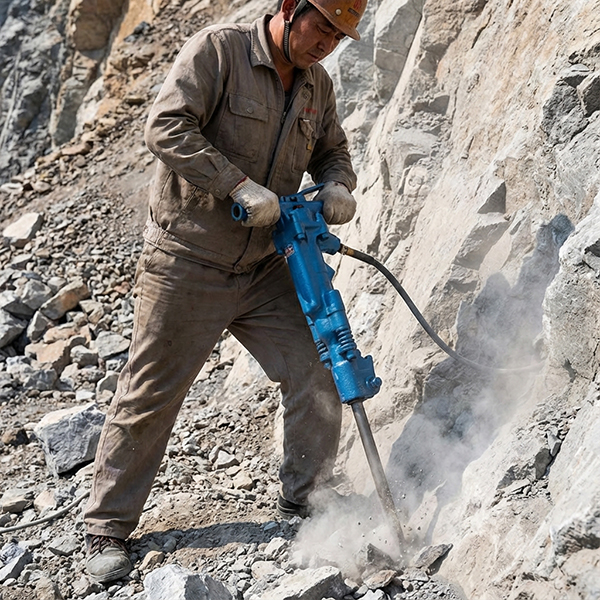

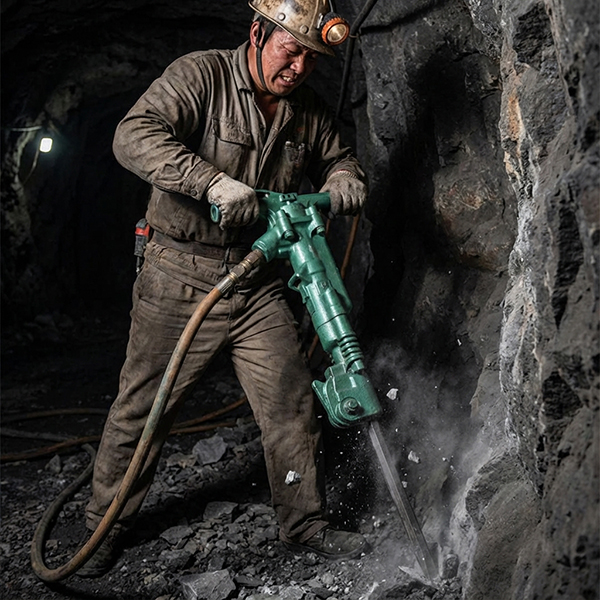

Mining and quarry support work: breaking softer rock/ore and assisting excavation tasks
In short: if the job involves repeated impact breaking and you want a hand held jack hammer that’s rugged and straightforward, B47 is a practical tool to consider.
Customer FAQs: What Buyers Usually Ask (With Straight Answers)
1) What air pressure does the B47 Pneumatic breaker hammer need?
In real jobsites, pneumatic breakers like this typically work around 0.5 MPa, which is also commonly described as 5–6 kgf/cm². Staying within that range helps the tool hit consistently and reduces unnecessary wear.
2) How do I match the B47 with an air hose?
Two important matching points:
The B47’s air tube diameter is 19 mm, which is the size you should follow for hose selection to maintain airflow.
Keep the hose as practical as possible and avoid sharp bends. (From your safety rules: don’t fold the hose into a sharp angle, keep it straight or gently curved to avoid pressure loss and hose damage.)
3) What chisel/shank does this hand held jack hammer use?
This model uses 25 × 105 mm shank size. That’s the number you want to check when choosing chisels—if the shank size doesn’t match, the tool won’t lock properly and it can become unsafe.
4) How strong/fast is it in real breaking work?
The B47 is rated at 1400 b.p.m (blows per minute), with a 47.6 mm piston diameter and 100 mm piston stroke. Those numbers matter because they reflect the impact cycle: a longer stroke and solid piston size typically provide a more forceful strike, while the BPM determines how quickly impacts repeat.
5) What’s the biggest mistake that causes damage?
The most common one is dry running or “blank hitting” (no chisel contact). Your guidelines stress strictly avoiding empty strikes, because it accelerates wear and can damage internal parts. Always keep the chisel engaged with the working surface.
6) How often should I oil and maintain the B47 Pneumatic jack hammer?
From your maintenance requirements:
Oil before use (lubrication is not optional for pneumatic tools).
During normal work, add pneumatic oil about every 2 hours (some sites use every 2–3 hours, but the safe rule is “around 2 hours” for heavy duty use).
Regular cleaning: many teams do a weekly disassembly/cleaning routine, using clean kerosene to wash parts, dry, and re-lubricate before assembly (as in your maintenance notes).
If the tool sits unused for over a week, oil it for storage before putting it away.
7) Any jobsite safety tips operators should follow?
A few “high-value” rules from your operating procedures:
Check the working face first (loose material, risk of falling debris).
Make sure fittings are tight—especially the hose connections. For high-pressure straight connections, use a proper U-shaped clamp (do not replace it with wire).
Don’t repair or disassemble the tool randomly on the jobsite. If it fails, stop and send it for proper repair.
Avoid driving the chisel too deep so it gets stuck; if stuck, loosen by controlled movement and clearing around the chisel—don’t force it violently.
Why Many Contractors Still Prefer a Pneumatic Jack Hammer Like B47
Even with many modern tool options, the appeal of a classic jack hammer remains the same: compressed air power is stable, the structure is straightforward, and it performs well in harsh environments. The B47 hand held jack hammer is especially attractive when you want a balanced combination of:
Strong impact cycle (47.6 mm piston + 100 mm stroke)
Steady working speed (1400 b.p.m)
Reasonable air demand (1.6 m³/min)
Jobsite-friendly setup (19 mm air tube, 3/4 P/T inlet, 25×105 mm shank)
Summary
The B47 Pneumatic breaker hammer is a dependable Pneumatic jack hammer built for real breaking work—concrete, brick openings, road repair, industrial maintenance, and more. With 1400 blows per minute, a 47.6 mm piston, and a 100 mm stroke, it delivers consistent impact while remaining a practical hand held jack hammer for daily site use.
If you operate it with the right air supply, keep the hose setup correct (19 mm air tube, 3/4 P/T inlet), and follow the key habits—regular oiling (about every 2 hours) and no empty strikes—you’ll get safer operation and a longer service life from the tool.
