Product Description
Let's be honest about something: most people don't think about pneumatic fittings until something stops working. Then suddenly, the thread gender, the size, the sealing method — all of it becomes the most important topic on the job site.

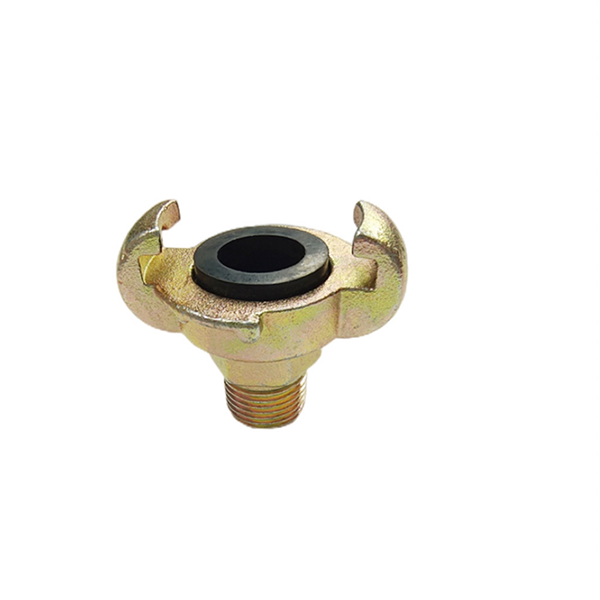

The BDL112 is a 1/2-inch male thread (externa) air coupling. The word externa tells you everything you need to know about how it connects: the threads are on the outside, and they screw into a female-threaded port on your equipment.
Matching Your Equipment's Port
Here's the practical question: do you need a male coupling (externa) or a female coupling (interno)?
Your equipment has a threaded hole (female port) → You need a male coupling → BDL112 (this product)
Your equipment has a threaded stud/nipple (male port) → You need a female coupling → BDL122
The BDL112 is designed for equipment with a 1/2-inch internal-thread air outlet or inlet. This is common on:
The air outlet of smaller portable compressors (5–8 m³/min class)
Quick-connect adapter blocks and distribution manifolds
The inlet side of certain pneumatic breakers (B47, G10, G12, G15, G16) and hand-held rock drills (Y24, Y26)
Inline filter-regulator units used to condition air before it reaches the drill
The Sealing Challenge
Thread sealing on pneumatic systems is one of those things that seems simple but causes a disproportionate number of problems. With the BDL112, the male threads screw into the female port, and the seal is created by:
Thread engagement — the threads themselves provide the primary mechanical connection
PTFE tape or thread sealant — fills the spiral gap between mating threads
The key detail most people miss: PTFE tape wraps in the direction of tightening. For a standard right-hand thread (which the BDL112 uses), that means wrapping clockwise when looking at the end of the male thread. Wrap the other direction and the tape bunches up and unwinds as you tighten, leaving gaps.
Steps for a proper seal:
Clean both the male threads (on the BDL112) and the female port threads
Apply 2–3 wraps of PTFE tape, clockwise looking at the thread end
Start the coupling by hand — it should thread smoothly for at least 2 full turns
If it binds, stop. Cross-threading will damage both the coupling and your equipment
Once hand-tight, give 1/4 to 1/2 turn with a wrench — no more
A Replacement Part Worth Stocking
The BDL112 costs approximately 0.85atfactoryprice.Inmanymarkets,thesamecouplingretailsfor3–5 — if you can find it. We regularly hear from customers in remote mining areas who have resorted to:
Using plumbing fittings from hardware stores (wrong thread, wrong pressure rating)
Machining custom adapters on-site (expensive, time-consuming)
Running equipment with leaking connections (wastes compressor fuel, reduces drill performance)
None of these are good solutions. A box of 50 BDL112 couplings takes up less space than a shoebox, weighs about 2 kg, and gives you a year's worth of replacements for a small drilling crew.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | BDL112 |
| Type | Externa (male/external thread coupling) |
| Thread Size | 1/2 inch (G1/2 / BSPP) |
| Thread Gender | Male (external) |
| Working Pressure | 0.4–0.63 MPa |
| Material | Brass |
| Sealing Method | PTFE tape or thread sealant |
| Compatible Equipment | B47, G16, G15, G12, G10, Y24, Y26, small compressors |
| Unit Price (EXW) | ~$0.85 USD |
Frequently Asked Questions
Q: How is this different from a "nipple" or "tail pipe" coupling?
A nipple (conuto) is a short adapter that typically has male threads on one end and a hose barb or different thread on the other. The BDL112 is a single-purpose male-thread coupling — it connects a male-threaded fitting to a female port. For hose barb/nipple adapters, see our BDL132 series.
Q: Can I use this in an oil line as well as an air line?
The BDL112 is designed for air service. For hydraulic oil lines at pressures above 10 MPa, we recommend carbon steel nickel-plated fittings, which have higher pressure ratings and better chemical compatibility with hydraulic fluids. The BDL112 will work for low-pressure lubrication lines (the automatic oiler feeds on most rock drills), but confirm your system pressure first.
Q: Why does my coupling keep leaking even after I replace it?
If a new coupling still leaks, the problem is likely in the female port threads on your equipment — not the coupling itself. Damaged port threads won't seal regardless of how many new couplings you install. Inspect the port threads with a light; if they're visibly worn, galled, or have flat spots, the equipment needs thread repair (a helicoil insert) or replacement.
Q: Do you ship to [my country]?
We ship worldwide from Xiamen, China. Standard delivery is 5 business days. Send us your delivery address and order quantity for a detailed quote including shipping.
