Product Description
Tunnel work is different from surface mining. The air is thick with dust, the space is tight, the lighting is marginal, and everything — your compressor, your hoses, your drills — is crammed into a heading that might be 3 meters wide. In that environment, the fewer problems you have, the better.
One thing tunnel crews don't need is a coupling that won't thread properly because someone grabbed the wrong size in the dark.

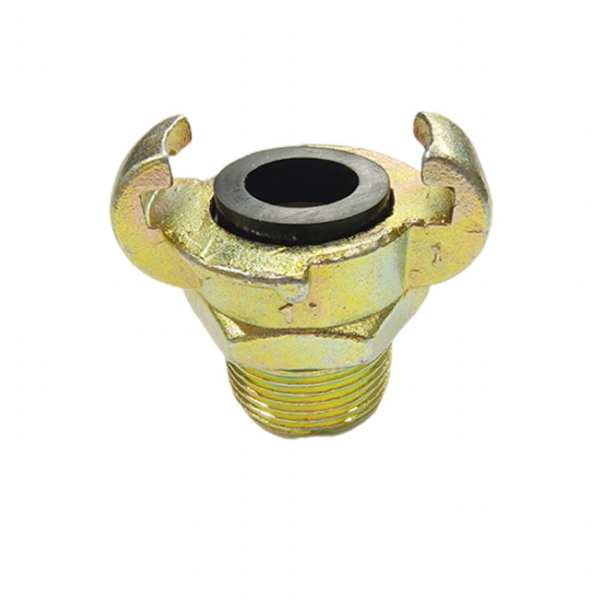

The BDL113 is a 3/4-inch male thread (externa) air coupling. It screws into a 3/4-inch female-threaded port — which, in tunneling operations, is often found on air distribution manifolds, inline filter units, the outlet of certain compressor models, and hose reel connection blocks.
Why Male Thread for Tunneling?
In tunnel operations, compressed air is typically delivered from a compressor at the tunnel portal through a main distribution line, then branched to individual drills via manifolds or T-connections. Those manifolds usually have female ports, which means each drill's air line needs a male coupling to connect.
The BDL113 serves that role. It's the coupling that turns a hose into a tool-ready air supply at the working face.
Build for Underground Conditions
Underground environments are hard on equipment in ways that don't show up in the product spec sheet. Humidity is constantly high. Temperature fluctuates between the cool tunnel interior and the warm working face near the drill. Dust gets into everything.
The BDL113 handles this with:
Brass body — inherently corrosion-resistant, no coating to chip or flake
Clean machined threads — no flash or burrs that could prevent proper engagement or damage port threads
Full G3/4 BSPP specification — matches standard port threads found on most pneumatic distribution equipment manufactured in the last 30 years
One detail worth mentioning: brass is non-sparking. In underground environments where methane levels can be a concern (particularly in coal mining tunnels), non-sparking couplings are not just preferred — they may be required by your site's safety regulations. While the BDL113 is designed for air service (not direct flame exposure), its brass construction eliminates the spark risk that steel fittings carry.
The Economics of Not Having It
A tunnel crew we supply in South America told us a story that stuck. They were driving a 4km tunnel, running two YT29s and a Y28 on two shifts. One morning, the manifold coupling on one of the drill lines cracked — probably from age and repeated tightening cycles.
They didn't have a spare. The nearest pneumatic supply shop was in a city 200km away. They ended up using a pipe fitting from a plumbing supplier that almost fit — close enough to thread on, loose enough to leak 15% of their air pressure. For three shifts, they ran that drill at reduced power until the replacement coupling arrived.
The cost of the fitting that arrived late: roughly 4.Thecostofthreeshiftsofreducedproduction:theyestimateditatover800.
At $0.90 each, you could have bought 200 BDL113s for the same money. That's enough to replace every coupling on site twice and still have spares.
Practical Tips for Tunnel Use
Color-code your couplings. In low-light conditions, spray-paint 3/4-inch couplings one color and 1/2-inch another. It takes 10 minutes and eliminates threading errors.
Pre-seal before going underground. Apply PTFE tape to the male threads before heading to the face. It's easier to do this at the staging area with good light.
Carry a minimum of 6 spares per active drill line. Two for the drill-side connection, two for the manifold-side, two buffer. It sounds like overkill until you need them at 2 AM.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | BDL113 |
| Type | Externa (male/external thread coupling) |
| Thread Size | 3/4 inch (G3/4 / BSPP) |
| Thread Gender | Male (external) |
| Working Pressure | 0.4–0.63 MPa |
| Material | Brass (non-sparking) |
| Sealing Method | PTFE tape (2–3 wraps) |
| Primary Use | Air manifold and distribution connections in tunnel/mining |
| Unit Price (EXW) | ~$0.93 USD |
Frequently Asked Questions
Q: Is this coupling safe for underground coal mining? The BDL113 is made from brass, which is non-sparking by nature. For compressed air service, it is safe for use in underground environments including coal mining tunnels. However, always verify compliance with your specific site's safety regulations and applicable mining authority requirements, which may mandate additional certifications.
Q: What's the difference between BDL113 (externa) and BDL123 (interno) in 3/4 inch? Same thread size, opposite gender. BDL113 has threads on the outside (male) and screws into a female port. BDL123 has threads on the inside (female) and screws onto a male port. You may need both, depending on what you're connecting to on each side of your air line.
Q: How much air pressure can this coupling handle? The BDL113 is rated for 0.4–0.63 MPa (58–91 PSI), which covers the operating range of all standard pneumatic rock drills and breakers. For reference, GB/T 3733-2008 requires that fitting working pressure be at least 1.5x the system's maximum pressure — the BDL113 meets this standard for all common pneumatic drilling equipment.
Q: Can I connect two BDL113s together? No — two male threads won't mate. To join two male-threaded lines, you'd need a female-female adapter (union) or a coupling with female threads on both ends. For connecting a BDL113 to another BDL113, use an intermediate female coupling (like our BDL123 interno).
