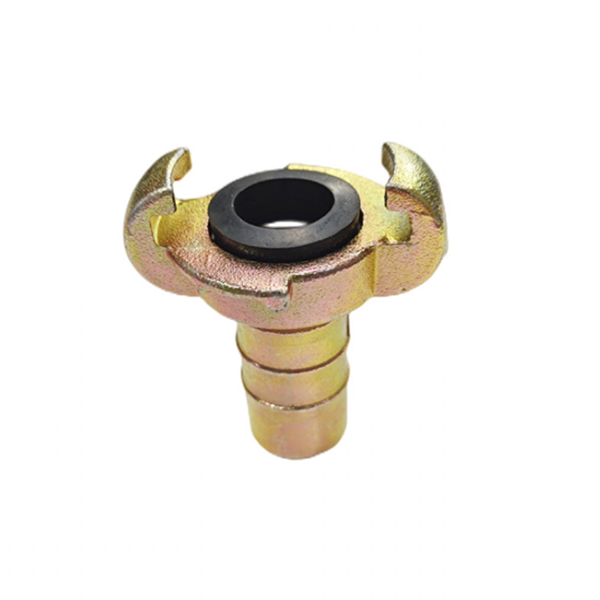

BDL134 1-inch tail pipe (conuto) air coupling adapter for industrial jack hammer and pneumatic drill systems. G1 male thread with 1" hose barb. Maximum air flow for heavy drilling. Factory price.
Most pneumatic drilling operations run on 3/4-inch connections. It's the industry default, and for good reason — it handles the air requirements of the most common rock drills without unnecessary bulk.
But some operations need more. Long hose runs. Multiple drills on a single compressor. High-capacity rigs that push air consumption beyond what a 3/4-inch line can efficiently deliver. For those setups, the BDL134 — a 1-inch tail pipe coupling — is the fitting that opens up the full capacity of your air system.
What Makes the 1-Inch Tail Pipe Different
The BDL134 has G1 (BSPP 1-inch) male threads on the equipment end and a 1-inch hose barb on the hose end. The larger bore means less pressure drop across the coupling, which translates directly into more air reaching the drill — and more air means more impact energy, faster drilling, and better production rates.
To put numbers on it: a 3/4-inch bore has a cross-sectional area of approximately 285 mm². A 1-inch bore gives you roughly 507 mm². That's a 78% increase in flow area at the connection point.
For a single drill on a short hose run, the practical difference might be small. But when you're running air through 50 meters of hose to reach a working face at the far end of a tunnel, every restriction point compounds. Each coupling, each bend, each size transition costs you a fraction of your pressure. The BDL134 minimizes that cost at the critical inlet point.
When You Should Step Up to 1 Inch
Consider the BDL134 if:
Your rock drill specifies a 1-inch air inlet (check your equipment manual)
You're running hose lengths over 40 meters from compressor to drill
Your compressor delivers 12+ m³/min and you want to make full use of that capacity
You're experiencing pressure drop issues that you've traced to coupling restrictions
You're standardizing your entire air system on 1-inch for simplified logistics
You probably don't need the BDL134 if:
Your drill has a 3/4-inch inlet (use BDL133 instead)
Your compressor is under 8 m³/min
Your hose runs are under 20 meters
You're running standard hand-held drills or small pneumatic breakers
The Full-Bore Advantage
One thing that gets overlooked: most tail pipe couplings are actually slightly smaller at their narrowest internal point than their nominal size would suggest. A cheap 1-inch coupling might have an internal bore of 22mm instead of the full 25mm, because the manufacturer saved material by using thinner walls.
The BDL134 is machined to provide as close to a full 1-inch (25mm) bore as the brass wall thickness allows. This isn't about aesthetics — it's about not throwing away the air flow advantage that you paid for when you chose 1-inch hose and connections.
Think of it like a highway. You build four lanes (1-inch hose) but put a two-lane bridge (undersized coupling) in the middle. Traffic still flows, but not at full speed. The BDL134 is a four-lane bridge.
The Component Nobody Stocks (But Everyone Eventually Needs)
We sell more BDL133s (3/4-inch) than BDL134s by a ratio of about 5:1. The 3/4-inch is the standard, and most operations don't need the 1-inch. But the BDL134 orders we do get tend to have a pattern: they come from operations that are scaling up, adding drills, extending their air distribution, or moving to higher-capacity compressors.
And almost every time, it's an urgent order. Because nobody thinks to order 1-inch tail pipes until they've already bought the 1-inch hose, the 1-inch compressor, and the drill with a 1-inch inlet — and then realize they don't have the one little fitting that connects it all together.
Our recommendation: if you're planning an operation that will use 1-inch air connections anywhere in the system, order your 1-inch tail pipes at the same time you order everything else. The cost is minimal, the shipping is consolidated, and you won't be the person making an emergency call at midnight.
Technical Specifications
Specification
Detail
Product Code
BDL134
Type
Conuto (tail pipe / nipple adapter)
Thread Size
1 inch (G1 / BSPP), male
Hose Barb Size
1 inch
Working Pressure
0.4–0.63 MPa
Material
Brass
Internal Bore
Full 1-inch (25mm, minimum)
Application
High-capacity air system inlet connections
Unit Price (EXW)
~$1.00 USD
Connection Diagram
Air Compressor → 1" Hose (SL76 abrazadera) → 1" Air Line → [BDL134 tail pipe screwed into drill inlet] → Pneumatic Drill
The BDL134 is the last coupling before the air enters your drill. Make it count.
Frequently Asked Questions
Q: Can I use the BDL134 with a 3/4-inch hose?
Technically, you could force a 3/4-inch hose onto a 1-inch barb — but don't. The hose won't grip the barb properly and will blow off under pressure. Either use a 1-inch hose with the BDL134, or use the BDL133 (3/4-inch tail pipe) with your 3/4-inch hose. Matching sizes matter.
Q: I have a 3/4-inch drill inlet. Can I use a reducer with the BDL134?
You'd need a reducing adapter: screw the BDL134's G1 male thread into the reducer, then connect the reducer's G3/4 end to the drill. However, this adds an unnecessary connection point and cost. If your drill has a G3/4 inlet, just use the BDL133 — it's the right tool for the job.
Q: How does the BDL134 compare to a quick-disconnect fitting?
A quick-disconnect (push-to-connect) fitting offers faster coupling and uncoupling, which is useful in rental operations or applications where equipment is frequently moved. The BDL134 is a permanent or semi-permanent installation. It's simpler, cheaper, more secure under vibration, and has a lower failure rate. For mining and tunneling where the connection stays put for weeks at a time, the BDL134 is the better choice.
Q: What's the lead time for bulk orders?
Standard orders ship within 5 business days. For large quantities (500+ pieces), please contact us for production scheduling. We can accommodate custom packaging and labeling for distributor orders.
