Product Description
On a busy quarry floor, you don't run one drill. You run six, eight, sometimes twelve. They're spread across the bench, each one pulling air from a main distribution header that runs the length of the operation. That header — the trunk line that feeds everything — isn't 3/4 inch. It's 1 inch, sometimes 2 inches, because it has to move enough compressed air to keep every drill on the bench hitting at full power.

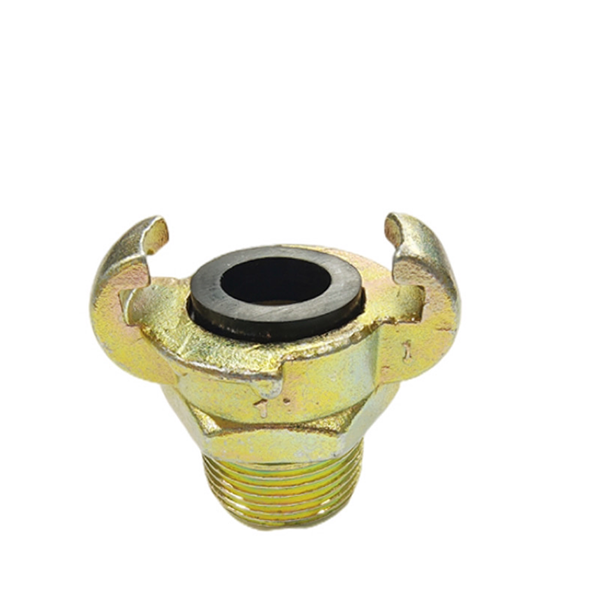

The BDL114 is a 1-inch male thread (externa) air coupling designed for exactly that kind of infrastructure. It connects into the female-threaded ports on air distribution headers, compressor outlets, and manifold blocks that handle high air volumes.
The Unseen Backbone of a Drilling Operation
Walk onto any active mining or quarry site and your eye goes to the drills. They're loud, they're dramatic, they're obviously doing the work. What you don't notice — because it's lying on the ground, covered in dust — is the air distribution system that makes those drills run.
That system is a network of hoses, T-junctions, manifolds, and couplings. And every connection point in that network needs a fitting that can handle continuous pressure without leaking, without vibrating loose, and without failing when the temperature drops at night or spikes in the midday sun.
The BDL114 is one of the fittings that holds that network together. It's not exciting. But take it out of the system and watch what happens to productivity.
Why Male Thread, Why 1 Inch?
The BDL114 has external (male) G1 threads, meaning it screws into a female G1 port. In practice, you'll find female G1 ports on:
Compressor outlets — many stationary and portable compressors in the 15–25 m³/min range use 1-inch female outlets
Air receiver / buffer tank connections — the tank that smooths pressure fluctuations before air enters the distribution line
Main distribution headers — the primary air line that runs along the bench or tunnel, with branch takeoffs for each drill
Filter-regulator-lubricator (FRL) units — the conditioning blocks that remove moisture, regulate pressure, and inject lubrication into the air stream before it reaches the drill
The 1-inch size provides a full-bore connection with an internal cross-section of approximately 507 mm², allowing unrestricted air flow for high-demand applications.
Performance Under Real Conditions
We test the BDL114 at 0.63 MPa (the upper end of standard pneumatic drilling pressure) for 8-hour continuous cycles. The brass body shows no deformation. The threads maintain their integrity through 15+ installation cycles. The seal — achieved with 2–3 wraps of PTFE tape — holds at leakage rates well below the ISO 4413 standard of 0.1%.
In the field, the reality is somewhat harsher. Equipment gets dropped. Couplings get overtightened by operators in a hurry. Thread sealant gets applied incorrectly. The BDL114 is designed to tolerate a reasonable amount of this real-world abuse without catastrophic failure — and if it does get damaged, replacement costs less than a cup of coffee.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | BDL114 |
| Type | Externa (male/external thread coupling) |
| Thread Size | 1 inch (G1 / BSPP) |
| Thread Gender | Male (external) |
| Working Pressure | 0.4–0.63 MPa |
| Material | Brass |
| Sealing Method | PTFE tape (2–3 wraps) |
| Application | Compressor outlets, distribution headers, FRL units, manifold ports |
| Unit Price (EXW) | ~$1.05 USD |
Sizing Your Air Distribution System
If you're setting up a new site or upgrading an existing one, here's a practical guide to coupling selection:
| System Component | Typical Port Size | Coupling Needed |
|---|---|---|
| Compressor outlet (15–25 m³/min) | G1 female | BDL114 (1" externa) |
| Compressor outlet (5–10 m³/min) | G3/4 female | BDL113 (3/4" externa) |
| Main distribution header | G1 female | BDL114 (1" externa) |
| Branch line to single drill | G3/4 female | BDL113 (3/4" externa) |
| Drill air inlet (YT29, YT28, 7655) | G3/4 male | BDL123 (3/4" interno) |
| Drill air inlet (Y24, B47) | G1/2 male | BDL122 (1/2" interno) |
Frequently Asked Questions
Q: I need to connect a 1-inch hose to a 3/4-inch drill inlet. What do I need? You need a reducer setup: BDL114 (1" externa) connects to your 1-inch air source, then a reducing nipple (conuto) steps down to 3/4 inch, and a BDL123 (3/4" interno) connects to the drill. Alternatively, check if your drill can accept a 1-inch direct connection — some models offer interchangeable inlet fittings.
Q: Can the BDL114 handle pressures above 0.63 MPa? The BDL114 is designed and tested for the standard pneumatic drilling range of 0.4–0.63 MPa. While the brass body may physically withstand higher pressures, we can't guarantee sealing performance or safety above the rated range. If your system operates at higher pressures (hydraulic applications, for example), use a fitting rated for that pressure class.
Q: What's the service life of a brass coupling? It depends on usage. A coupling that's installed once and left alone can last 3–5 years. A coupling that's frequently removed and reinstalled will show thread wear after 10–15 cycles. In a high-activity mining environment, plan for annual replacement. The cost is negligible compared to the risk of a failure.
