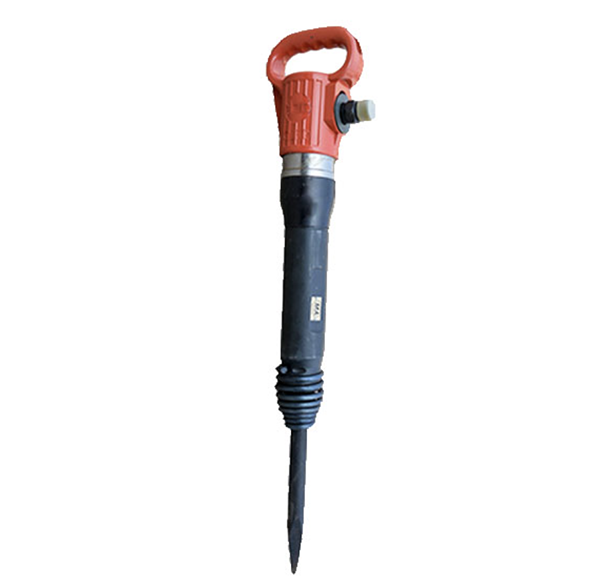

Looking at the data for the G12 Pneumatic Air Pick Hammer, it’s clear this model is built as a serious, heavy-duty jack hammer. It keeps the classic compressed‑air design you described—air drives a piston back and forth to hit the chisel tail—but pushes the power a bit further.

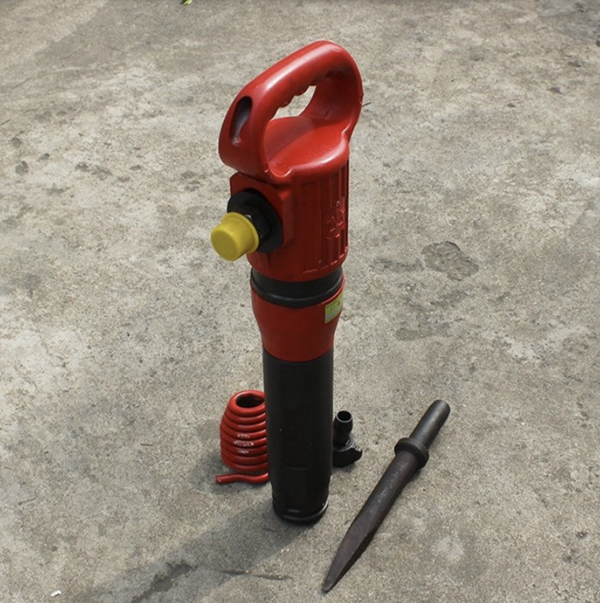

The G12 is a hand held jack hammer with a focus on strong individual blows: 45J impact energy, 16Hz impact frequency, and a long 155mm hammer stroke. With a 570mm overall length and 12kg total weight, it’s not a small toy tool; it’s a Pneumatic jack hammer you bring out when normal light picks are just too slow.
Key technical parameters (with real‑world meaning)
Machine length: 570mm – gives good leverage on floors, roads and walls.
Weight: 12kg – slightly heavier body helps the jack hammer “sit” on the concrete instead of bouncing.
Impact energy: 45J – higher than many standard hand held models; built for hard concrete and dense materials.
Impact frequency: 16Hz – fewer but stronger blows, better for deep cracking.
Piston diameter: 38mm – large piston for strong air-driven force.
Hammer stroke: 155mm – long stroke that works together with the 45J rating.
Working pressure: 0.63MPa – standard industrial pressure for a Pneumatic jack hammer.
Air consumption: 26L/s – needs a solid compressor to keep power stable.
Air hose inner diameter: 19mm – large hose size, helps maintain airflow and pressure.
Chisel shank size: 24 × 70mm – matched to heavy-duty chisels for impact resistance.
From these numbers, you can think of the G12 as a “power‑biased” hand held jack hammer: same 570mm body length as the G10 type, same 38mm piston and 155mm stroke style, but 45J impact energy and a bit more mass at 12kg to handle that power.
Typical Work for the G12 Pneumatic Jack Hammer
Based on the usage scenarios in your product knowledge, plus the G12 specs, this model fits jobs like:
Breaking thick concrete slabs, foundations, beams and reinforced sections
Road and municipal repair, where asphalt and concrete pavement need to be opened quickly

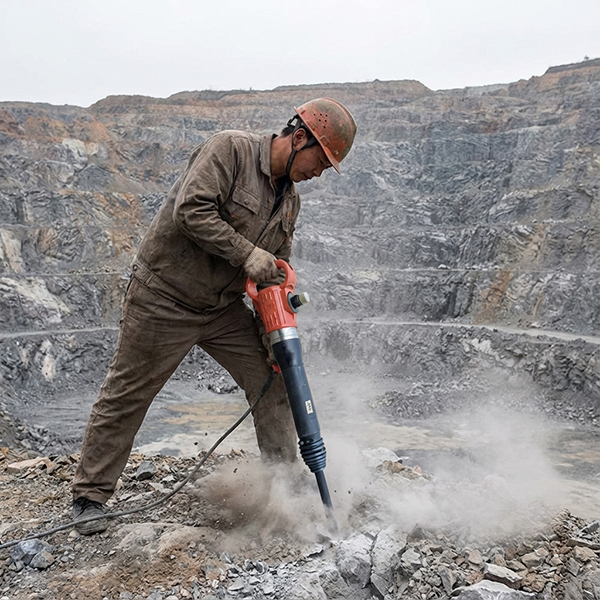

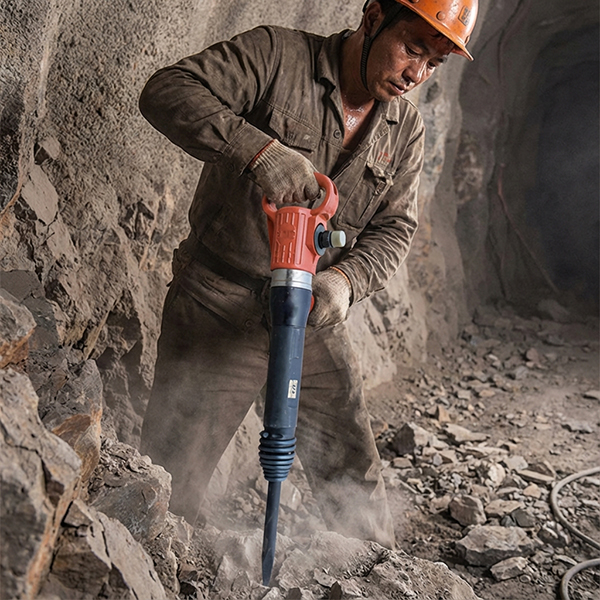

Mining and quarry applications, especially harder or compact layers where you want strong, single blows
Heavy industrial maintenance, furnace/boiler demolition, thick buildup removal
Structural openings in projects like railway, highway, dock and power station construction, where you mentioned air picks are commonly used to “break, open and clean”
With 45J at 16Hz, the G12 is less about light surface chipping and more about “get it broken and open” efficiency.
How the G12 Hand Held Jack Hammer Works (in simple terms)
The internal structure follows the pattern you described in your technical notes:
Air distribution / valve unit
Impact mechanism (thick-walled cylinder with a moving hammer body)
Chisel / pick with 24 × 70mm shank
Compressed air at 0.63MPa enters, the valve system switches intake/exhaust, and the 38mm piston drives the hammer body back and forth over a 155mm stroke. Each forward stroke, the hammer hits the chisel tail and transfers 45J of energy into the material. On the return stroke, air forms a buffer, reducing harsh impact inside the cylinder and helping tool life.
Because the G12 uses a 19mm air hose and 26L/s air consumption, it really depends on stable airflow. That lines up directly with your own guidance: right hose inner diameter, hose not too long, clean inside, tight and reliable connections.
Questions Customers Are Likely to Ask
I’ll follow the style of your Q&A notes and adapt them to this specific Pneumatic jack hammer.
Is the G12 too heavy to be practical as a hand held jack hammer?
At 12kg, the G12 is on the heavier end for a hand held tool, but for ground and wall demolition that’s not a bad thing. The extra 1kg over a 11kg model helps absorb recoil and keeps the jack hammer pressed into the concrete. For long overhead work, a lighter pick is easier, but for floors, pavements and wall bases, this weight actually works in your favor.What kind of compressor and air line do I really need?
To get the advertised performance (not a weak version of it), match the numbers:
Working pressure: 0.63MPa under load, not just at idle
Air consumption: at least 26L/s available to the tool
Hose: 19mm inner diameter as specified
Your own instructions emphasize blowing out the hose before connection, keeping connectors tight and avoiding leaks. On a Pneumatic jack hammer like the G12, small air losses quickly show up as less impact and more operator fatigue.
What is the G12 better at compared to a lighter jack hammer?
If someone compares it to a compact 14J–20J tool, the difference is simple:
G12: 45J impact energy, 16Hz, long 155mm stroke, 12kg body
Light model: lower J, higher Hz, shorter stroke, lighter body
The G12 will normally break deeper and faster in hard material: fewer hits, but each hit really opens cracks. It’s not the “clean-up” tool; it’s the “get it broken” tool.
How should I operate it to avoid damage and downtime?
Here your existing product knowledge is very clear, and it applies directly to the G12:
No dry running / empty striking – always work with the chisel engaged in the material.
Don’t jam the chisel too deep; if it gets stuck, don’t forcefully twist the whole jack hammer. Loosen it by changing angle or chipping around it.
Keep the hose from kinking or being crushed during work.
Check the chisel tail and the 24 × 70mm shank fit: no burrs, no wrong size, no excessive clearance.
These simple habits matter more on a 45J long-stroke tool, because every mistake happens at higher energy.
What about oiling and regular maintenance?
Your maintenance rules can be applied almost line by line:
Add proper pneumatic tool oil before use.
During work, oil every 2 hours or so to keep the internal parts lubricated.
After a full day (you mentioned 8 hours) of work, plan a cleaning and inspection cycle.
On a weekly basis, disassemble, flush with kerosene or similar, dry, then oil and reassemble.
If the G12 sits unused for a week, oil it before storage so internal parts don’t dry out or corrode.
With a 38mm piston moving over 155mm at 16Hz, lubrication is what keeps the motion smooth instead of metal-on-metal.
What should I check before starting a shift with the G12?
From your process description, a realistic pre-start checklist would be:
Inspect the housing and handle: no cracks or obvious damage.
Make sure all fasteners, springs and clamps are present and flexible.
Confirm air inlet and filter screen are clean, not blocked.
Blow out the 19mm hose, then connect and check for leaks.
Insert the 24 × 70mm chisel, verify proper lock and alignment.
Test the jack hammer briefly on material (not in the air) to confirm smooth impact.
Conclusion: What the G12 Pneumatic Jack Hammer Is Really For
The G12 Pneumatic Air Pick Hammer is a straightforward, high‑power hand held jack hammer meant for teams who need serious breaking force in a portable format. The hard numbers—45J impact energy, 155mm stroke, 0.63MPa working pressure, 26L/s air consumption, 19mm hose diameter, 570mm length and 12kg weight—describe a Pneumatic jack hammer tuned for heavy demolition, road work, mining and industrial maintenance.
If the goal is fast, deep breaking of concrete, masonry or pavement rather than light finishing work, the G12 sits in a very practical spot: still hand held, but with enough power in each blow that operators can actually feel the difference in real job progress.
