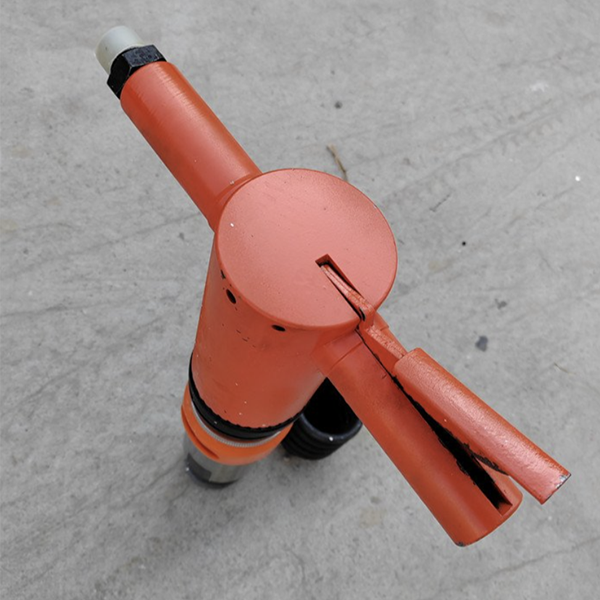

1) What Is a Pneumatic Air Pick?
A pneumatic air pick is a handheld construction tool powered by compressed air. It breaks hard materials through repeated impact. Because it is handheld, it is designed to be compact and portable.
Its main components include:
an air distribution mechanism,
an impact mechanism, and
a pick/bit assembly.
The impact mechanism is typically a thick-walled cylinder with a striker (impact hammer) that reciprocates along the inner wall of the cylinder. The bit tail is inserted at the front end of the cylinder, while the rear end is equipped with a valve box.
2) Key Differences Between Pneumatic and Electric Picks
A pneumatic pick is air-driven and belongs to pneumatic tools.
An electric pick is motor-driven and belongs to electric tools.
Both are used for breaking materials, but their power sources and performance characteristics differ:
Power source:
Pneumatic pick: powered by an air compressor (or another compressed-air source).
Electric pick: powered directly by electricity.
Working action:
Electric demolition hammers operate through a motor-driven reciprocating hammering mechanism, producing a chiseling effect. They mainly chisel; the bit typically does not rotate.Breaking capability and use case:
Pneumatic picks are generally stronger than electric picks, especially for heavy, continuous-duty work. However, they require a compressor system.Safety and environmental profile:
Pneumatic tools are often considered safer and cleaner in operation, but the overall setup cost is usually higher.
For long-duration, high-intensity applications, pneumatic picks are often the better choice.
3) Working Principle of a Pneumatic Air Pick
A pneumatic air pick uses compressed air to drive a piston or striker in continuous reciprocating motion, causing repeated impacts at the bit tail. It is widely used in mining, roadwork, and similar heavy-duty tasks.
Structurally, the tool includes an air distribution section, an impact section, and a bit assembly. Around the cylinder wall are multiple longitudinal air passages. Through the valve system, these passages alternately admit and exhaust air according to the striker’s motion requirements, enabling cyclic forward and backward movement.
During operation:
The operator presses the bit against the work surface.
The handle sleeve and control valve open the air path.
The valve system automatically times air intake and exhaust.
The striker repeatedly moves back and forth, hitting the bit tail and fracturing the material.
When the striker moves backward, compressed air in the valve/cylinder chamber provides a cushioning effect, then the system redistributes air for the next forward impact. This repeated cycle creates continuous, efficient breaking action.
In short, the pneumatic air pick is a compact, practical handheld impact tool with a simple structure and convenient operation.
